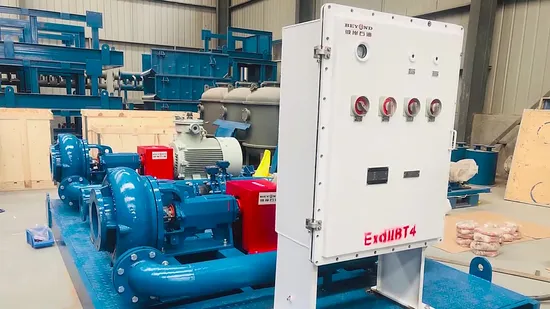

Mud Desilter for Soild Control System

Overview Product Description As a solids control equipment of the second stage in drilling operation, desander is used t;

Send inquiry

Overview

Basic Info.

Model NO.	JZQJ100X10
Type	Desander
Transport Package	Export Packing
Trademark	BEYOND
Origin	China
HS Code	8431431000
Production Capacity	2000sets/Year

Product Description

As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid. Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.mud cleaner is the second and third class solids control equipments, combined desander cones, desilter cones and a underset shale shaker together, its structure is compressed, small size, powerful function, is the ideal choice of second and third class solids control equipments.ud cleaner equipment is a normal model of our company,we can design customized cost-effective mud Cleaner for customers' special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system.

Product Parameters

Model	JZQJ100×10	JZQJ100×12	JZQJ100×14	JZQJ100×16
Hydrocyclone diameter	100mm	100mm	100mm	100mm
Working pressure	0.2~0.45MPa	0.2~0.45MPa	0.2~0.45MPa	0.2~0.45MPa
Capacity	120-160 m3/h	160-200 m3/h	200-220 m3/h	200-240 m3/h
Screen size	1240×585 mm	1240×585 mm	1240×585 mm	1240×585 mm
Screen spec	120-200 mesh	120-200 mesh	120-200 mesh	120-200 mesh
Inlet diameter	6″	6″	6″	6″
Outlet diameter	8″	8″	8″	8″
Motor power	0.5 kW	0.5 kW	0.5 kW	0.5 kW
Weight	680kg	720kg	740kg	780kg
Overall dimension	2310×1136×2085	2546×1136×2085	2646×1136×2085	2866×2018×2085
